Dry Van Trailer:
a Freight & Logistics Guide

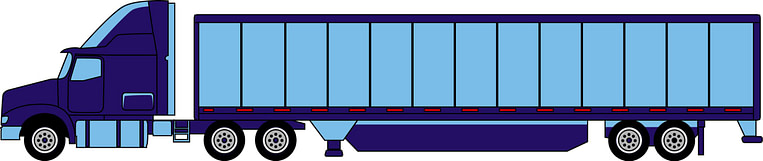

What is a Dry Van Trailer?
Dry van trailers are the preferred trailer for transporting boxed or palletized goods, with an enclosed structure designed to protect against the elements and theft, ensuring safe delivery of cargo.
The variability in sizing, ease of use, and minimal compliance requirements, make them a cornerstone of the logistics industry.
More often than not, when we see a freight truck on the road, it’s pulling a dry van trailer.
Types of Dry Van Trailers
Dry van trailers come in several configurations to accommodate different types of cargo. Here are some of the most common types of dry van trailers:
Standard Dry Van
This is the most common type of dry van trailer, characterized by its enclosed, rectangular shape. It has swing or roll-up rear doors for easy loading and unloading. Standard dry vans are versatile and can transport a wide range of dry goods, making them the workhorse of the logistics industry.
Pup Trailer
Pup trailers are shorter and often used in combination with a full-size dry van trailer or another pup trailer. They allow for more flexibility in transporting smaller loads or when navigating tight spaces. Pup trailers are commonly used for regional distribution and delivery.
High Cube Dry Van
High cube dry vans have extra interior height compared to standard dry vans. This additional height is beneficial for transporting taller cargo, such as large machinery or equipment, that wouldn't fit in a standard trailer. High cube trailers typically have an interior height of 9.5 to 10.5 feet.
Drop Deck Dry Van
Drop deck dry vans have a lower floor in the front section, allowing for added vertical clearance. They are suitable for transporting tall or oversized cargo that requires more headroom. The drop deck design makes it easier to load and unload such cargo.
Air Ride Dry Van
Air ride dry vans are equipped with an air suspension system. This type of suspension provides a smoother ride and helps reduce shock and vibration during transit. It's especially useful for delicate or sensitive cargo that needs extra protection.
Climate-Controlled Dry Van
While not technically a dry van, climate-controlled trailers are similar in appearance but come with refrigeration or heating capabilities. They are used for transporting temperature-sensitive cargo, such as pharmaceuticals, electronics, or food products. Climate-controlled dry vans maintain a controlled temperature range throughout the journey.
Flat Floor Dry Van
Flat-floor dry vans have a floor that is completely level from front to back, without any wheel wells or obstructions. This design is advantageous when loading or unloading cargo using forklifts or pallet jacks. It provides a smooth surface for efficient material handling.
Insulated Dry Van
Insulated dry vans have walls and ceilings lined with insulating materials, such as foam or fiberglass. While they may not provide full climate control, insulated trailers help protect cargo from extreme temperature fluctuations and are often used for goods that require some temperature stability.
Furniture Van
Furniture vans are designed with padded walls and logistic tracks for securing furniture and other delicate or high-value cargo. They provide added protection against scratches and damage during transport.
Pad-Wrap Dry Van
Pad-wrap dry vans are specialized trailers used for transporting delicate or high-end goods, including artwork, sculptures, and electronics. They feature padded interior walls and specialized securing methods to ensure the safety of fragile cargo.
When selecting a dry van trailer, it's essential to consider the nature of the cargo and any special handling or environmental conditions required for safe and secure transport.
Specifications of Dry Van Trailers
Cargo Carried:
Dry van trailers are versatile and can transport a wide variety of goods, including consumer products, electronics, and industrial equipment.
Dry van trailers come in various lengths, with the most common sizes ranging from 28 to 53 feet.
Dimensions:
The maximum dimensions typically adhere to 53’ x 8.5’ x 13’ to meet standard semi-trailer specifications.
Axles:
Dry van trailers are typically equipped with 2 to 3 axles, depending on load capacity and local regulations.
Trailer Weight:
The weight of a dry van trailer varies based on design and material, but it generally falls within the range of 10,000 to 30,000 lbs.
Maximum Load:
Maximum load capacities depend on the trailer's design and axles but must comply with regulations, ensuring they do not exceed 80,000 lbs in the United States.
Configuration for Efficient & Secure Transport
Dry van trailers are configured for the efficient and secure transportation of dry goods. They come equipped with unique features tailored to the needs of various cargo types, ensuring safe loading, unloading, and transport. Let's delve into these features in detail.
Unique Features of Dry Van Trailers
Dry van trailers are equipped with standard features designed to protect and secure the transported goods.
Enclosed Design:
The enclosed design of dry van trailers shields cargo from external elements, ensuring protection against weather conditions, dust, and debris.
Roll-Up or Swing Doors:
Most dry van trailers have roll-up or swing doors at the rear, providing easy access for loading and unloading cargo.
E-Track Systems:
E-Track systems are installed inside the trailer, allowing for the secure attachment of cargo using straps, hooks, or other tie-down methods.
Wooden or Composite Floors:
Dry van trailers feature wooden or composite floors that are durable and designed to withstand the weight and impact of various cargo types.
Versatile Load Bars:
Load bars can be positioned within the trailer to prevent cargo from shifting during transit, ensuring stability and safety.
Temperature Control:
While dry van trailers do not offer temperature-controlled environments like refrigerated trailers, they can be insulated to provide some level of temperature protection for certain goods.
Applications of Dry Van Trailers
Dry van trailers find applications across numerous industries, serving a broad range of shipping needs, including:
- Retail and e-commerce
- Manufacturing and distribution
- Construction and building materials
- Consumer goods and electronics
Common Goods Transported
Dry van trailers are ideal for transporting various dry goods, especially boxed or palletized, including:
- Electronics and appliances
- Furniture
- Clothing and textiles
- Automotive parts
Advantages of Dry Van Trailers
Dry van trailers offer several advantages for the transportation of dry goods:
Weather Protection:
The enclosed design shields cargo from adverse weather conditions, ensuring goods arrive in good condition.
Security:
Lockable doors provide added security, deterring theft and unauthorized access to cargo.
Versatility:
Dry van trailers are versatile and can transport a wide range of products, making them suitable for diverse industries. As long as the goods are boxed or palletized, they’ll be safe and secure in a box trailer.
Cost-Effective:
Box trailers offer a cost-effective solution for shipping dry goods, reducing the need for specialized equipment. Typically, a drive van can be loaded manually or with a forklift.
Dry Van Trailer Freight Rates
Dry van trailer pricing varies based on several factors, including:
- Distance traveled
- Type and quantity of cargo
- Additional services such as loading and unloading
- Any special handling requirements or example: multiple straps and load bars.
- Cargo Value - when more than $100,000
- Pickup and delivery hours
- Delivery location, residential or commercial
- Current fuel cost
- Current supply and demand near the pickup and delivery location
Permit and Compliance Requirements
Compliance and permit requirements for dry van trailers are generally straightforward, except when they’re used to transport hazardous materials (see below).
However, there are regulation, permitting, and compliance requirements that apply to all commercial motor vehicles, including dry van trailers. Here are some of the key considerations:
Commercial Driver's License (CDL):
Commercial drivers operating vehicles with a gross vehicle weight rating (GVWR) of 26,001 pounds or more, including dry van trailers, are generally required to have a CDL. The specific CDL class and endorsements may vary depending on the type of cargo and trailer being transported.
Weight Limits:
Dry van trailers must comply with federal and state weight limits, including axle weight and gross weight restrictions. Exceeding these limits may result in fines and penalties.
Hours of Service (HOS):
Commercial drivers operating dry van trailers must adhere to HOS regulations that govern the maximum allowable driving hours, mandatory rest breaks, and daily/weekly driving limits. These regulations are enforced to prevent driver fatigue and promote road safety.
Vehicle Inspection:
Regular vehicle inspections and maintenance are required to ensure that dry van trailers and their associated vehicles are in safe operating condition. The Federal Motor Carrier Safety Administration (FMCSA) has established regulations for vehicle inspection and maintenance.
Cargo Securement:
Proper cargo securement is essential to prevent load shifting during transit. Dry van trailers must comply with cargo securement regulations outlined in the Federal Motor Carrier Safety Regulations (FMCSR). Load securement devices such as straps, chains, and load bars may be required based on the nature of the cargo.
Hazardous Materials:
If dry van trailers are used to transport hazardous materials, drivers and carriers must adhere to the Hazardous Materials Regulations (HMR) outlined by the FMCSA. This includes obtaining the necessary hazardous materials endorsements on the driver's CDL and complying with specific labeling, placarding, and documentation requirements.
Insurance:
Carriers operating dry van trailers must maintain appropriate insurance coverage to protect against liability and cargo damage during transportation. Insurance requirements vary depending on factors such as cargo type and transportation routes.
Environmental Regulations:
Environmental regulations may apply to dry van trailers, especially if they are used to transport certain types of cargo that could have an environmental impact in case of spills or accidents. Compliance with spill response and environmental protection measures may be required.
Vehicle Registration:
Dry van trailers, like all commercial vehicles, must be registered and properly licensed by state and federal regulations. The registration process may vary from state to state.
State and Local Regulations:
State and local jurisdictions may have additional requirements, such as weight limits, size restrictions, and permits for certain types of cargo or routes. Carriers should be aware of and comply with these regional regulations.
Selecting a Dry Van Freight Broker
When hiring a dry van trailer freight broker, consider the following factors to ensure a smooth and reliable transportation process:
Reputation and Experience:
Research the company's reputation and seek reviews and testimonials from previous clients, particularly those with similar shipping needs.
Equipment and Technology:
Ensure the company's fleet includes well-maintained and modern dry van trailers equipped with the latest technology for cargo safety and tracking.
Compliance and Certification:
Confirm that the dry van freight company adheres to industry regulations and standards, especially when handling hazardous materials.
Security Measures:
Assess the company's security protocols to safeguard cargo during transit, including locking systems and tracking capabilities.
Insurance Coverage:
Verify the extent of insurance coverage for your cargo and understand the claims process in case of incidents during transportation.
Operational Support:
Evaluate the company's customer support and communication capabilities, ensuring timely updates on shipment status.
Route Planning and Efficiency:
Inquire about the company's route planning strategies to optimize transit times and minimize delays.
Environmental Considerations:
If environmental sustainability is important to your business, inquire about the company's eco-friendly practices and efforts to reduce emissions.
Cost and Billing Transparency:
Understand the company's pricing structure and inquire about any additional charges for specialized services. Ensure transparency in billing.
Dry Van Shipping & Freight Quote
If your company requires the services of a dry van freight broker, Guided Freight is happy to assist. We specialize in managing complex logistics for seamless transportation. Obtaining a dry van trailer freight quote from our company is quick and straightforward. We look forward to hearing from you.
Frequently Asked Questions
The name “dry van’ comes from its unique ability to keep the enclosed goods dry and secure during transport. They are fully enclosed and sealed, protecting cargo from exposure to external elements such as rain, snow, dust, and humidity. This helps maintain a dry environment inside, which is crucial for goods vulnerable to moisture damage.
A well-maintained and accident-free dry van trailer can be expected to operate for up to 10 years without needing major repairs or replacement. This time will vary on usage, road conditions, and maintenance.
Whether a dry van or flatbed is better for shipping freight depends on what is being shipped. Dry vans are ideal for goods that need to be enclosed and secured. Flatbeds are more versatile, allowing for oversized loads and loading from the top, sides, and rear.
